Improving Azure Custom Vision Object Recognition by using and correcting the prediction pictures

Intro

Last month I wrote about integrating Azure Custom Vision Object Recognition with HoloLens to recognize to label objects in 3D space. I wrote the prediction went pretty well, although I used only 35 pictures. I also wrote the process of taking, uploading and labeling pictures is quite tedious.

Improving on the go

It turns out Custom Vision retained all the pictures I uploaded in the cause of testing. So every time I used my HoloLens and asked Custom Vision to locate toy aircraft, it stored that in the cloud with it's prediction. And the fun thing is, you can use those pictures to actually improve your model again.

After some playing around with my model my (for the previous blog post about this subject) , I clicked the prediction tab, and I found about 30 pictures - each for every time I used the model from my HoloLens. I could use those to improve my model. After that, I did some more testing using the HoloLens to show you how it's done. So, I clicked the Predictions tab and there were a couple of more pictures:

If we select the first picture, we see this:

The model has already annotated the areas where it thinks is a an airplane in red. Interestingly now the model is a lot better than it originally was (when it only featured my pre-loaded images) as it now recognizes the DC-3 Dakota on top - that it has never seen before - as an airplane! And even the X-15 (the black thing on the left ) is recognized. Although the X-15 had a few entries in the training images it barely looks like an airplane (for all intents and purpose it was more a spaceship with wings to facilitate a landing).

I digress. You need to click every area you want to confirm:

And when you are done, and all relevant areas are white:

Simply click the X top right. The image will now disappear from the "Predictions" list and end up in the "Training images" list

Some interesting things to note

The model really improved from adding the new images. Not only did it recognize the DC3 'Dakota' that had not been in the training images, but also this Tiger Moth model (the bright yellow one) that it had never  seen before:

Also, it stopped recognizing or doubting things like the HoloLens pouch that's lying there, and my headphones and hand were also recognized as 'definitely not an airplane'

Yet, I also learned it's dangerous to take the same background over and over again. Apparently the model starts to rely on that. If I put the Tiger Moth on a dark blue desk chair in stead of a light blue bed cover

Yes...  the model is quite confident airplane in the picture but it's not very good at pinpointing it.

And as far as the Curtiss P40 'Kittyhawk' goes - even though it has been featured extensively in both the original training pictures and the ones I added from the Predictions, this no is success either. The model is better at pinpointing the aircraft, but considerably less sure it is an aircraft. And the outer box, that includes the chair, gives a 30.5%. So in looks that to make this model even more reliable I still need more pictures but then on other background, more different lighting, etc.

Conclusion

You don't have to take very much pictures up front to incrementally improve a Custom Vision Object Recognition model - you can just iterate on it's predictions and improve them. It feels a bit like teaching a toddler how to build something from Legos - you first show the principle, then let them muck around, and every time things goes wrong, you show how it should have been done. Gradually they get the message. Or at least, that's what you hope. ;)

No (new) code this time, as the code from last time is unchanged.

Disclaimer - I have no idea how much prediction pictures are stored and for how long - I can imagine not indefinitely, and not an unlimited amount. But I can't attach numbers to that.

Mixed Reality Toolkit vNext–dependency injection with extension services

Intro

The Mixed Reality Toolkit vNext comes with an awesome mechanism for dependency injection. This also takes away a major pain point – all kinds of behaviors that are singletons that are called from everywhere, leading to all kind of interesting timing issues - and tightly coupled classes. This all ends wit extension services, which piggyback on the plugin structure of the MRKT-vNext. In this post I will describe how you make, configure and use such an extension service

Creating an extension service

A service that can be used by the extension service framework (and be found by the inspector dropdown that I will show later) needs to implement IMixedRealityExtensionService at the very least. But of course we want to have the service make do something useful so I made a child interface:

using Microsoft.MixedReality.Toolkit.Core.Interfaces;

namespace Assets.App.Scripts
{
    public interface ITestDataService : IMixedRealityExtensionService
    {
        string GetTestData();
    }
}

the method GetTestData is the method we want to use.

Any class implementing IMixedRealityExtensionService needs to implement six methods and two properties. And to be usable by the framework, it needs to have this constructor:

<ClassName>(string name, uint priority)

To make this a little more simple, the MRKT-vNext contains a base class BaseExtensionService that provides default implementation for all the required stuff. And thus we can make a TestDataService very simple, as it a) implements all properties and b) forces us to provide the necessary constructor:

using Microsoft.MixedReality.Toolkit.Core.Services;
using UnityEngine;

namespace Assets.App.Scripts
{
    public class TestDataService : BaseExtensionService, ITestDataService
    {
        public TestDataService(string name, uint priority) : base(name, priority)
        {
        }

        public string GetTestData()
        {
            Debug.Log("GetTestData called");
            return "Hello";
        }
    }
}

Registering the service in the framework

Check if a custom profile has been selected. Assuming you have followed the procedure I described in my previous post, you can do you this by selecting the MixedRealityToolkit game object in your scene and then double-clicking the “Active Profile” field

If the UI is read-only, there’s no active custom profile. Check if there’s a profile in MixedRealityToolkit-Generated/CustomProfiles and drag that on top of the ActiveProfile field of the MixedRealityTool object. If there’s no custom profile at all, Please refer to my previous blog post.

Scroll all the way down to Additional Service Providers.

Click the </> button. This creates a MixedRealityRegisteredServiceProvidersProfile in
MixedRealityToolkit-Generated/CustomProfiles and shows this editor.

Click “+ Register a new Service Provider”. This results in a “New Configuration 8” that if you expand it, looks like this:

If you click the “Component Type” drop down you should be able to select “Assets.Apps.Scripts” and then “TestDataService”.

I also tend to give this component a bit more understandable name so the final result looks like this:

Calling the service from code

A very simple piece of code shows how you can then retrieve the and use the service from the MixedRealityToolkit:

using Microsoft.MixedReality.Toolkit.Core.Services;
using UnityEngine;

namespace Assets.App.Scripts
{
    public class TestCaller : MonoBehaviour
    {
        private void Start()
        {
            var service  = MixedRealityToolkit.Instance.GetService<ITestDataService>();
            Debug.Log("Service returned " + service.GetTestData());
        }
    }
}

Notice I can retrieve the implementation using my own interface type. This very is similar to what we are used to do in ‘normal’ IoC containers like Unity (the other one), AutoFac, SimpleIoC. If you attach this behaviour to any game object in the hierarchy (I created an empty object “Managers” to this extent), and run this project, you will simply see this in the console:

It’s not spectacular, but it proves the point that this is working as expected

Conclusion

MRTK-vNext provides a very neat visual select mechanism for wiring up dependency injection that is very easy to use. I can also easily retrieve implementations of the service using an interface, just like any other IoC platform. The usage of profiles makes it very flexible and reusable. This alone makes it a great framework, and then I have not even looked into the cross-platform stuff. That I will do soon. Stay tuned.

In the mean time, the demo project can be found here.

Mixed Reality Toolkit vNext–setting up a project

Intro

You might have heard it – the Mixed Reality Toolkit folks are busy with a major rewrite. The original MRTK was intended to accelerate applications targeted toward HoloLens and (later) Windows Mixed Reality immersive headsets. The new version “aims to further extend the capabilities of the toolkit and also introduce new features, including the capability to support more VR/AR/XR platforms beyond Microsoft's own Mixed Reality setup”.

I’ve been quite busy but finally found some time to play with it. And while I am doing that, I am going to shoot off some smaller and bigger blogs about things I learned – both for myself to remember and you to enjoy.

Be advised: it’s still heavy in development. The first beta release explicitly states:

This is a pre-release version and is not feature complete.

• This release is not intended for production use.
• This release contains many breaking changes from previous HoloToolkit and Mixed Reality Toolkit vNext releases.

So let’s dive in. In this first blog post on this subject, I will simply describe how to set up an empty project.

Cloning the latest MRTK-vNext from GitHub

This is pretty standard procedure. I prefer to use TortoiseGit for this, as I seem to be of the dying creed that’s not particularly fond of command lines. The repo is here (as it has been for a while)

After you have cloned the project, check out branch mrtk_development. This is the bleeding edge. This is where the most things happen (and the most things break ;) ).

Creating a new Unity project

Also fairly standard. You will need Unity 2018.2.18f1 for that. Or, by the time you will read this, probably an ever newer version. After you have created the project, close Unity again.

Adding the MRTK to you project

From the MRKT repo, copy the following folders and files to the assets folder of your project:

• MixedRealityToolkit
• MixedRealityToolkit-SDK
• MixedRealityToolkit.meta
• MixedRealityToolkit-SDK.meta

Configuring the MRKT-vNext components in your scene

Configuring the MRTK has become a whole lot easier.

• Open and existing scene or create one.
• Click Mixed Reality Toolkit/Configure
• You will see two game objects appear in your scene


Now Unity starts to complain about there being no camera tagged as MainCamera. This can easily be fixetd by tagging it manually:

Basically you know have an empty project

Preparing a custom configuration

If you click the MixedRealityToolkit game object, on the DefaultMixedRealityToolkitConfigurationProfile field:

you will see this this appear in the inspector

If you then click the button “Copy & Customize” it will create a new folder MixedRealityToolkit-Generated, and in that a CustomProfiles folder. And in that a MixedRealityToolkitConfigurationProfile

Make sure to check that the new profile is actually applied:

You will now see that the settings are no long greyed out, and now you can change and swap out components.

The fun thing is, these are not longer all MonoBehaviours and (most of all) no longer singletons. The MixedRealityToolkit class is the only ‘singleton’ left. The MixedRealityToolkitConfigurationProfile is a so called ‘scriptable object’ that can hold the configuration of the whole MRTK. But the MixedRealityToolkitConfigurationProfile  is more or less a hat stand for all kinds of other partial configurations, all of which will end up in a profile as well.

Concluding words

We have taken the first (very small) baby steps into configuring the MRTK-vNext. We actually did not write any code and therefore, unlike most of my other posts, this does not come with a sample project. The next one will, though.

Using Azure Custom Vision Object Recognition and HoloLens to identify and label objects in 3D space

Intro

HoloLens is cool, Machine Learning is cool, what's more fun than combine these two great techniques. Very recently you could read "Back to the future now: Execute your Azure trained Machine Learning models on HoloLens!"  on the AppConsult blog, and as early as last May my good friend Matteo Pagani wrote on the same blog about his very first experiments with WindowsML - as the technology to run machine learning models on your Windows ('edge') devices is called. Both of the blog posts use an Image Classification algorithm, which basically tells you whether or not an object is in the image, and what the confidence level of this recognition is.

And then this happened:

"Object Detection finds the location of content within an image" is the definition that pops up if you hover your mouse over the (i) symbol behind "Project Types". So not only do you get a hit and a confidence level but also the location in the image where the object is.

Now things are getting interesting. I wondered if I could use this technique to detect objects in the picture and then use HoloLens' depth camera to actually guestimate where those object where in 3D space.

The short answer: yes. It works surprisingly good.

The global idea

• User air taps to initiate the process
• The HoloLens takes a quick picture and uploads the picture to the Custom Vision API
• HoloLens gets the recognized areas back
• Calculates the center of each area with a confidence level < 0.7
• 'Projects' these centers on a plane 1 m wide and 0.56 high that's 1 meter in front of the Camera (i.e. the user's viewpoint)
• 'Shoots' rays from the Camera through the projected center points and checks if and where the strike the Spatial Map
• Places labels on the detected points (if any).

Part 1: creating and training the model

Matteo already wrote about how simple it actually is to create an empty model in CustomVision.ai so I skip that part. Inspired by his article I wanted to recognize airplanes as well, but I opted for model airplanes - much easier to test with than actual airplanes. So I dusted off all the plastic airplane models I had built during my late teens - this was a thing shy adolescent geeks like me sometimes did, back in the Jurassic when I grew up ;) - it helped we did not have spend 4 hours per day on social media ;). But I digress. I took a bunch of pictures of them:

And then, picture by picture, I had to mark and label the areas which contains the desired objects. This is what is different from training a model for 'mere' object classification: you have to mark every occasion of your desired object.

This is very easy to do, it's a bit boring and repetitive, but learning stuff takes sacrifices, and in the end I had quite an ok model. You train in it just the same way as Matteo already wrote about - by hitting big green 'Train'  button that's kind of hard to miss on the top right.

When you are done, you will need two things:

• The Prediction URL
• The Prediction key.

You can get those by clicking the "Performance" tab on top:

Then click the "Prediction URL" tab

And this will make this popup appear with the necessary information

Part 2: Building the HoloLens app to use the model

Overview

The app is basically using three main components:

• CameraCapture
• ObjectRecognizer
• ObjectLabeler

They sit in the Managers object and communicate using the Messenger that I wrote about earlier.

Part 2a: CameraCapture gets a picture - when you air tap

It's not exactly clear who originally came up with a saying like "great artist steal" but although I don't claim any greatness I do steal. CameraCapture is a slightly adapted version of this article in the Unity documentation. There are only a few changes. The original always captures the image in the "BRA32" format as this can be used as texture on a plane or quad. Unfortunately that is not a format CustomVision accepts. The app does show the picture it takes before the user's eye if the DebugPane property is set to a game object (in the demo project it is). Should you not desire this, simply clear the "Debug Pane" field in the "Camera Capture" script in the Unity editor.

So what you basically see is that CameraCapture takes a picture in a format based upon whether or not the DebugPane is present:

 pixelFormat = _debugPane != null ? CapturePixelFormat.BGRA32 : CapturePixelFormat.JPEG

and then either directly copies the captured (JPEG) photo into the photoBuffer, or it shows in on the DebugPane and as BRA32 and converts it to JPEG from there

void OnCapturedPhotoToMemory(PhotoCapture.PhotoCaptureResult result,
                             PhotoCaptureFrame photoCaptureFrame)
{
    var photoBuffer = new List<byte>();

    if (photoCaptureFrame.pixelFormat == CapturePixelFormat.JPEG)
    {
        photoCaptureFrame.CopyRawImageDataIntoBuffer(photoBuffer);
    }
    else
    {
        photoBuffer = ConvertAndShowOnDebugPane(photoCaptureFrame);
    }

    Messenger.Instance.Broadcast(
        new PhotoCaptureMessage(photoBuffer, _cameraResolution, CopyCameraTransForm()));

    // Deactivate our camera
    _photoCaptureObject.StopPhotoModeAsync(OnStoppedPhotoMode);
}

The display and conversion is done this way:

private List<byte> ConvertAndShowOnDebugPane(PhotoCaptureFrame photoCaptureFrame)
{
    var targetTexture = new Texture2D(_cameraResolution.width,
      _cameraResolution.height);
    photoCaptureFrame.UploadImageDataToTexture(targetTexture);
    Destroy(_debugPane.GetComponent<Renderer>().material.mainTexture);

    _debugPane.GetComponent<Renderer>().material.mainTexture = targetTexture;
    _debugPane.transform.parent.gameObject.SetActive(true);
    return new List<byte>(targetTexture.EncodeToJPG());
}

It creates a texture, uploads the buffer into it, destroys the current texture and sets the new texture. Then the object game object is actually being displayed, and then it's used to convert the image to JPEG

Either way, the result is a JPEG, and the buffer contents are sent on a message, together with the camera resolution and a copy of the Camera's transform. The resolution we need to calculate the height/width ratio of the picture, and the transform we need to retain because in between the picture being taken and the result coming back the user may have moved. Now you can't just send the Camera's transform, when the user moves. So you have to send a 'copy', which is made by this rather crude method, using a temporary empty gameobject:

private Transform CopyCameraTransForm()
{
    var g = new GameObject();
    g.transform.position = CameraCache.Main.transform.position;
    g.transform.rotation = CameraCache.Main.transform.rotation;
    g.transform.localScale = CameraCache.Main.transform.localScale;
    return g.transform;
}

Part 2b: ObjectRecognizer sends it to CustomVision.ai and reads results

The ObjectRecognizer is, apart from some song and dance to pick the message apart and start a Coroutine, a fairly simple matter. This part does all the work:

private IEnumerator RecognizeObjectsInternal(IEnumerable<byte> image,
    Resolution cameraResolution, Transform cameraTransform)
{
    var request = UnityWebRequest.Post(_liveDataUrl, string.Empty);
    request.SetRequestHeader("Prediction-Key", _predictionKey);
    request.SetRequestHeader("Content-Type", "application/octet-stream");
    request.uploadHandler = new UploadHandlerRaw(image.ToArray());
    yield return request.SendWebRequest();
    var text = request.downloadHandler.text;
    var result = JsonConvert.DeserializeObject<CustomVisionResult>(text);
    if (result != null)
    {
        result.Predictions.RemoveAll(p => p.Probability < 0.7);
        Debug.Log("#Predictions = " + result.Predictions.Count);
        Messenger.Instance.Broadcast(
            new ObjectRecognitionResultMessage(result.Predictions,
            cameraResolution, cameraTransform));
    }
    else
    {
        Debug.Log("Predictions is null");
    }
}

You will need to set _liveDataUrl and predictionKey values via the editor, as you could see in the image just below the Part 2a header. This behaviour creates a web request to the prediction URL, adds the prediction key as header, and the right content type. The body content is set to the binary image data using an UploadHandlerRaw. And then the request is sent to CustomVision.ai. The result is then deserialized into a CustomVisionResult object, all the predictions with a probability lower than the 0.7 threshold are removed, and the predications are put back into a message, to be sent to the ObjectLabeler, together once again with the camera's resolution and transform.

A little note: the CustomVisionResult together with all the classes it uses are in the CustomVisionResult.cs file in the demo project. This code was generated by first executing executing the SendWebRequest and then copying the raw output of "request.downloadhandler.text" into QuickType. It's an ideal site to quickly make classes for JSON serialization.

Interestingly to note here is that Custom Vision returns bounding boxes by giving top,left, width and height - in values that are always between 0 and 1. So if the top/left of your picture sits at (0,0) it's all the way to the top/left of the picture, and (1,1) is a the bottom right of the picture. Regardless of the height/with ratio of your picture. So if your picture is not square (and most cameras don't create square pictures)) you need to know the actual width and height of your picture - that way, you can calculate what pixel coordinates actually correspond to the numbers Custom Vison returns. And that's exactly what the next step does.

Part 2c: ObjectLabeler shoots for the Spatial Map and places labels

The ObjectLabeler also contains pretty little code as well, although the calculations may need a bit of explanation. The central piece of code is this method:

public virtual void LabelObjects(IList<Prediction> predictions,
    Resolution cameraResolution, Transform cameraTransform)
{
    ClearLabels();
    var heightFactor = cameraResolution.height / cameraResolution.width;
    var topCorner = cameraTransform.position + cameraTransform.forward -
                    cameraTransform.right / 2f +
                    cameraTransform.up * heightFactor / 2f;
    foreach (var prediction in predictions)
    {
        var center = prediction.GetCenter();
        var recognizedPos = topCorner + cameraTransform.right * center.x -
                            cameraTransform.up * center.y * heightFactor;

        var labelPos = DoRaycastOnSpatialMap(cameraTransform, recognizedPos);
        if (labelPos != null)
        {
            _createdObjects.Add(CreateLabel(_labelText, labelPos.Value));
        }
    }

    if (_debugObject != null)
    {
         _debugObject.SetActive(false);
    }

    Destroy(cameraTransform.gameObject);
}

First, we clear any labels that might have been created in a previous run. Then we calculate the height/width ratio of the picture (this is 2048x1152, so heightFactor will always be 0.5625, but why hard code something that can be calculated). Then comes the first interesting part. Remember that I wrote we are projecting the picture on a plane 1 meter before the user. We do this because the picture then looks pretty much live sized. So we need to go forward 1 meter from the camera position:

cameraTransform.position + cameraTransform.forward.normalized

But then we end up in the center of the plane. We need to get to the top left corner as a starting point. So we go half a meter to the left (actually, -1 * right, which amounts to left), then half the height factor up.

cameraTransform.up * heightFactor / 2f

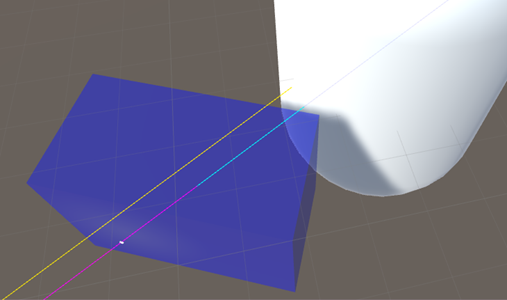

In image, like this:

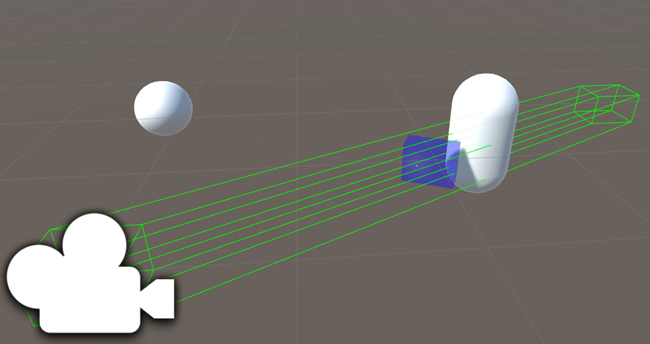

Once we are there, we calculate the center of the prediction using a very simple extension method:

public static Vector2 GetCenter(this Prediction p)
{
    return new Vector2((float) (p.BoundingBox.Left + (0.5 * p.BoundingBox.Width)),
        (float) (p.BoundingBox.Top + (0.5 * p.BoundingBox.Height)));
}

To find the actual location on the image, we basically use the same trick again in reverse: first move to the right the amount the x is from the top corner

var recognizedPos = topCorner + cameraTransform.right * center.x

And then a bit down again (actually , -up) using the y value scaled for height.

-cameraTransform.up * center.y * heightFactor;

Then we simply do a ray cast to the spatial map from the camera position through the location we calculated, basically shooting 'through' the picture for the real object.

private Vector3? DoRaycastOnSpatialMap(Transform cameraTransform,
                                       Vector3 recognitionCenterPos)
{
    RaycastHit hitInfo;

    if (SpatialMappingManager.Instance != null &&
        Physics.Raycast(cameraTransform.position,
                       (recognitionCenterPos - cameraTransform.position),
            out hitInfo, 10, SpatialMappingManager.Instance.LayerMask))
    {
        return hitInfo.point;
    }
    return null;
}

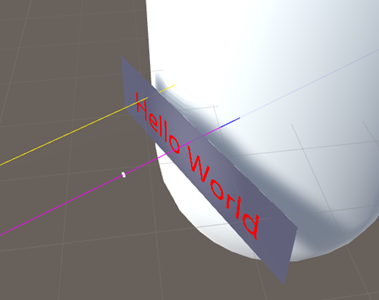

and create the label at the right spot. I copied the code for creating the label from two posts ago, so I will skip repeating that here.

There is little bit I want to repeat here

if (_debugObject != null)
{
     _debugObject.SetActive(false);
}

Destroy(cameraTransform.gameObject);

If the debug object is set (that is to say, the plane showing the photo HoloLens takes to upload) it will be turned off here otherwise it obscures the actual labels. But more importantly is the last line: I created the copy of the camera's transform using a temporary game object. As the user keeps on shooting pictures those will add up and clutter the scene. So after the work is done, I clean it up.

And the result...

The annoying thing is, al always, I can't show you a video the whole process as any video recording stops as soon as the app takes a picture. So the only think I can show you is this kind of doctored video - I restarted video immediately after taking the picture, but I miss the part of where the actual picture is floating in front of the user. This is how it looks like, though, if you disable the debug pane from the Camera Capture script:

Lessons learned

• There is a reason why Microsoft says you need at least 50 pictures for a bit reliable recognition. I took about 35 pictures of about 10 different models of airplanes. I think I should have take more like 500 pictures (50 of every type of model airplanes) and then things would have gone a lot better. Nevertheless, it already works pretty well
• If the camera you use is pretty so-so (exhibit A: the HoloLens built-in video camera) it does not exactly help if your training pictures are made with a high end DSLR, which shoots in great detail, handles adverse lighting conditions superbly, and never, ever has a blurry picture.

Conclusion

Three simple objects to call a remote Custom Vision Object Recognition Machine Learning model and translate its result into a 3D label. Basically a Vuforia-like application but then using 'artificial intelligence'  I love the way how Microsoft are taking the very thing they really excel in - democratizing and commoditizing complex technologies into usable tools - to the Machine Learning space.

The app I made is quite primitive, and it's also has a noticeable 'thinking moment' - since the model lives in the cloud and has to be accessed via a HTTP call. This is because the model is not a 'compact' model, therefore it's not downloadable and it's can't run on WindowsML. Wel will see what the future has in store for these kinds of models. But the app shows what's possible with these kinds of technologies, and it makes the prospect of a next version of HoloLens having an AI coprocessor all the more exiting!

Demo project - without the model, unfortunately - can be downloaded here.

Adjusting and animating HoloLens/Mixed Reality holograms using Unity animations

Intro

Of course you scan script literally all animations using (something like) LeanTween, but you can also animate things using Unity animations. I have been using it primarily for basic repetitive animations, like the spinning of aircraft propellers or and helicopter rotors in AMS HoloATC. Sometimes models come with built-in animation, sometimes they don't. You can add it yourself, with some fiddling around.

First, a model...

I wanted to show the model I used for AMS HoloATC, but I could not find it anymore. The trouble with Asset Stores is that people may add models as they see fit, but can also can remove them again. So for this sample I took another helicopter - this free model of a Aerospatiale 342 Gazelle.

..then a project...

This is the usual stuff:

• import the Mixed Reality toolkit ,
• configure the scene, project and capability settings
• then import the model into your project.

... and then we find the rotor components

We drag the helicopter inside the Hierarchy (it will appear at 0,0,0 with rotation 0,0,0) and we rotate the view so that we look on top of it. We want the rotor to animate, so we will need to find out which of the components make up the rotor. If you click a rotor blade once it will select the whole helicopter, but if you click it again, the hierarchy will jump to the actual sub component making up a rotor blade.

So the blade pointing to top/left  is "Component#5_001". The other rotor blades are "Component#5_002" (pointing right) and "Component#5_003" (pointing bottom/left). We also identify the top of the rotor, which is component "Component#9_001"

What you now need to do is create an empty game object "Rotor" inside the helicopter game object and drag the four components inside the Rotor game object. Unity will warn you that you are breaking things.

but in this case we don't care.

Done! Now we can rotate the rotor. But the observant looker has already spotted there is a problem, that will become apparent it we set the Y rotation of new "Rotor" object to for instance 150

Great. The pivot point of the rotor - the point where the red and blue arrows hit the green square - is apparently not the visual center. This seems to happen rather often with imported models. I am not quite sure what causes it, but I know how you can fix it. And I am going to show it, too ;).

Some advanced fiddling to make the visual center the pivot point

First of all, make sure the Tool Handle Position is set to Pivot:

You will find this at the top left of the scene window.

Set Rotor Y rotation back to 0, create an empty game object "InnerRotor" inside "Rotor" and drag all the components inside InnerRotor. Like this:

.. and then you select the Rotor component, and press ALT+D, duplicating the Rotor component.

Then you select the Rotor component again. If you view the Pivot Point - actually sporting three arrows in this view - you will see it's quite a bit from where we want the center of the rotor to be. You will need to move that point manually to where the visual center of the Rotor is. The copy of the Rotor will help you identify that point.

It takes quite some fiddling to get it right. After a few minutes of playing around, I came to these values:

... but now the actual visual rotor is floating high about the helicopter!

This is where the InnerRotor object is for. For X/Y/Z values enter the exact negative values of Rotor, so

And boom. The Rotor falls once again on the helicopter. And now if you set the Y rotation for Rotor to 150:

You can check if the rotor stays in place by selecting the Y rotation textbox and click-and-drag over that, the rotation will then change and you get view like the rotor is actually rotating a bit.

If you do this yourself on another hologram and the rotor still does not stay in the center while rotating, set InnerRotor position values back to 0, and fiddle a bit more till it fits. It also help to make the total model bigger (so the whole of the helicopter) while doing this. For some reason it's hard to zoom in on small models, but easy on big ones.

Once you are satisfied, you can delete or disable the Rotor (1) copy as we don't need it anymore. After you have done this, it is maybe a good moment to make a new prefab of your adapted helicopter.

And now - finally some animation

It took me quite some fiddling around to find the finer details of the timeline editor so I am writing a very detailed step-by-step guide.I am sure there are smarter ways to do this, but this is how I start:

• I select the game object I want to animate
• Then I click Window/Animation and that brings up this pane:

Default this window appears as a floating window. I just drag it in the bottom pane with the Game and Console windows.

Then I select the Create button. This prompts me to make an animation file, which I make in an Animation folder:

And then we get another button:

If we click "Add Property" we get this popup

Expand the Transform entry:

Then click the + behind "Rotation". This will add the Rotor rotation to the timeline. People who have ever used Blend will not suddenly sit up straight because they seem something familiar - I know I did!

Expand Rotor: Rotation

At the 1:00, click the top diamond, all the diamonds at the 1:00 mark will turn blue

And then hit the delete button on your keyboard. All diamonds at the 1:00 mark will disappear.

Now click at the timeline bar on top, at the 0:10 mark:

The time line will jump to 0:10 If you look at the inspector a the Rotor's properties, you will notice the properties for Rotation X/Y/Z have turned blue:

Change Y into 120 (it will turn red)

Now, and this is the tricky part: double click in the timeline editor at the place where the white vertical line intersects with an imaginary horizontal line through the "Rotation.y" property text:

X marks the spot ;). This should be the result:

Now click at the top bar again, at the 0:20 mark. Change the value of the Y rotation in the inspector to 240 and double-click at the imaginary intersection point again. Repeat for the 0:30 mark, here use value 360.

Then click the little play button on the Animation and the rotor will be spinning. You will noticed that the speed is a bit stuttering, but you can speed it up a little as by increasing the Samples displayed in this video below:

Job done. Now finally drag the Helicopter over the already created prefab, and you can create as many animated helicopters as you want. As soon as you hit Unity's "Play" button, all rotors will start spinning

Conclusion

The animator is powerful but not very intuitive at first, hence the step-by-step thing I wrote. It is pretty powerful though, especially for simple repetitive animations. I am sure you can do lots more with it. Be aware all this animations use a bit of performance, so spawning 15000 helicopters with spinning blades in a HoloLens may not be such a great idea. I think that will be true for helicopters without spinning rotors too, but that's not the point.

The demo project (containing 3 helicopters) called GetToTheChoppa ;) can be downloaded here.
